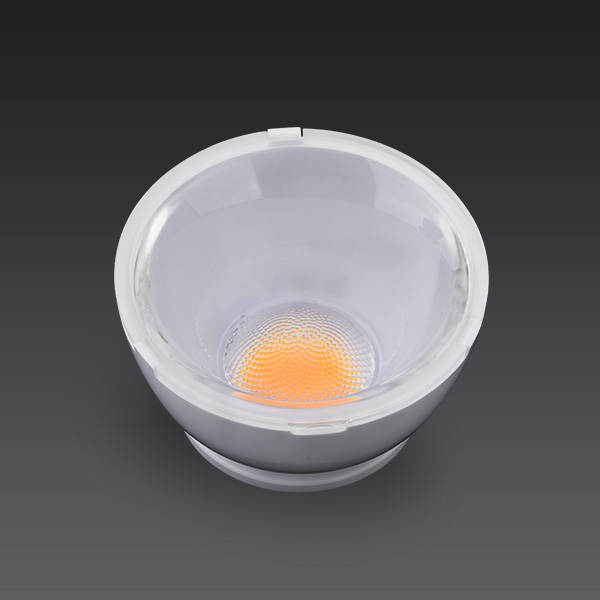

KA 系列
95%效率透镜
- 高中心光强，出光效率高达95%
- 深防眩光学设计，UGR<19
- 搭配ZHAGA平台光源支架
- 产品规格: D35, D45, D50, D62, D68
- FWHM: 18°, 24°, 34°, 60°
- 可选PC或PMMA
视频
应用
商业照明，店铺照明。
产品
| 型号 | 直径 | 底孔 | 高度 | 角度 | 材料 | |
|---|---|---|---|---|---|---|
| 61-0242-1 | 28 | 12 | 13.5 | 15° | PC | |
| 61-0242 | 28 | 12 | 13.5 | 18° | PMMA | |
| 61-0244-1 | 28 | 12 | 13.5 | 24° | PC | |
| 61-0244 | 28 | 12 | 13.5 | 24° | PMMA | |
| 61-0246-1 | 28 | 12 | 13.5 | 36° | PC | |
| 61-0246 | 28 | 12 | 13.5 | 36° | PMMA | |
| 61-0248-1 | 28 | 12 | 13.5 | 60° | PC | |
| 61-0248 | 28 | 12 | 13.5 | 60° | PMMA | |
| 61-0224-1 | 35 | 14 | 17.4 | 15° | PC | |
| 61-0224 | 35 | 14 | 17.4 | 15° | PMMA | |
| 61-0226-1 | 35 | 13.6 | 17.4 | 24° | PC | |
| 61-0226 | 35 | 13.6 | 17.4 | 24° | PMMA | |
| 61-0228 | 35 | 13.6 | 17.4 | 36° | PMMA | |
| 61-0228-1 | 35 | 13.6 | 17.4 | 36° | PC | |
| 61-0230 | 35 | 13.4 | 17.4 | 60° | PMMA | |
| 61-0230-1 | 35 | 13.6 | 17.4 | 60° | PC | |
| 61-0206 | 45 | 17 | 21 | 15° | PMMA | |
| 61-0206-1 | 45 | 17 | 21 | 18° | PC | |
| 61-0208 | 45 | 17 | 21 | 22° | PMMA | |
| 61-0208-1 | 45 | 17 | 21 | 24° | PC | |
| 61-0210 | 45 | 17 | 21 | 36° | PMMA | |
| 61-0210-1 | 45 | 17 | 21 | 36° | PC | |
| 61-0212 | 45 | 17 | 21 | 60° | PMMA | |
| 61-0212-1 | 45 | 17 | 21 | 60° | PC | |
| 61-0214-1 | 50 | 18.4 | 23.6 | 18° | PC | |
| 61-0214 | 50 | 18.4 | 23.6 | 18° | PMMA | |
| 61-0216 | 50 | 18.4 | 23.6 | 24° | PMMA | |
| 61-0216-1 | 50 | 18.4 | 23.6 | 24° | PC | |
| 61-0218 | 50 | 18.4 | 23.6 | 36° | PMMA | |
| 61-0218-1 | 50 | 18.4 | 23.6 | 36° | PC | |
| 61-0220 | 50 | 18.4 | 23.6 | 60° | PMMA | |
| 61-0220-1 | 50 | 18.4 | 23.6 | 60° | PC | |
| 62-0083 | 62 | 23.9 | 31.5 | 18° | PMMA | |
| 62-0083-1 | 62 | 23.9 | 31.5 | 18° | PC | |
| 62-0085-1 | 62 | 23.9 | 31.5 | 24° | PC | |
| 62-0085 | 62 | 23.9 | 31.5 | 24° | PMMA | |
| 62-0087-1 | 62 | 23.9 | 31.5 | 24° | PC | |
| 62-0087 | 62 | 23.9 | 31.5 | 36° | PMMA | |
| 62-0089 | 62 | 23.9 | 31.5 | 60° | PMMA | |
| 62-0089-1 | 62 | 23.9 | 31.5 | 60° | PC | |
| 62-0068-1 | 68 | 26.9 | 33.8 | 18° | PC | |
| 62-0068 | 68 | 26.9 | 33.8 | 18° | PMMA | |
| 62-0070-1 | 68 | 26.9 | 33.8 | 24° | PC | |
| 62-0070 | 68 | 26.9 | 33.8 | 24° | PMMA | |
| 62-0072-1 | 68 | 26.9 | 33.8 | 36° | PC | |
| 62-0072 | 68 | 26.9 | 33.8 | 36° | PMMA | |
| 62-0074-1 | 68 | 26.9 | 33.8 | 60° | PC | |
| 62-0074 | 68 | 26.9 | 33.8 | 60° | PMMA |
