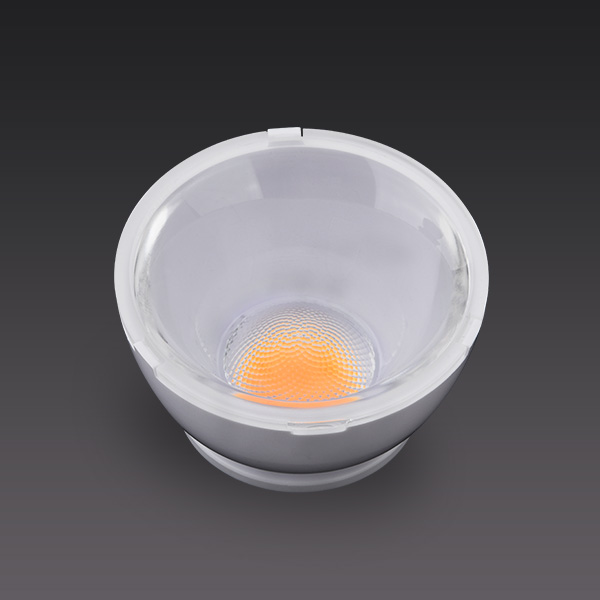

KA Series
95% Efficiency Lens
- High center intensity，95% efficiency.
- Deep anti-glare optical design, UGR<19.
- Compatible with ZHAGA holder.
- Diameters: D35, D45, D50, D62, D68.
- FWHM: 18°, 24°, 34°, 60°.
- Material: PMMA
Product Video
Application
Commercial Lighting, Shop Lighting.
Product List
| Model | OD | Hole | H | FWHM | Material | |
|---|---|---|---|---|---|---|
| 61-0224 | 35 | 0 | 17.4 | 15° | PMMA | |
| 61-0226 | 35 | 0 | 17.4 | 24° | PMMA | |
| 61-0228 | 35 | 0 | 17.4 | 36° | PMMA | |
| 61-0230 | 35 | 0 | 17.4 | 60° | PMMA | |
| 61-0206 | 45 | 0 | 21 | 15° | PMMA | |
| 61-0208 | 45 | 0 | 21 | 22° | PMMA | |
| 61-0210 | 45 | 0 | 21 | 36° | PMMA | |
| 61-0212 | 45 | 0 | 21 | 60° | PMMA | |
| 61-0214 | 50 | 0 | 23.6 | 15° | PMMA | |
| 61-0216 | 50 | 0 | 23.6 | 24° | PMMA | |
| 61-0218 | 50 | 0 | 23.6 | 36° | PMMA | |
| 61-0220 | 50 | 0 | 23.6 | 60° | PMMA | |
| 62-0083 | 62 | 0 | 31.5 | 15° | PMMA | |
| 62-0085 | 62 | 0 | 31.5 | 24° | PMMA | |
| 62-0087 | 62 | 0 | 31.5 | 36° | PMMA | |
| 62-0089 | 62 | 0 | 31.5 | 60° | PMMA | |
| 62-0068 | 68 | 0 | 33.8 | 15° | PMMA | |
| 62-0070 | 68 | 0 | 33.8 | 24° | PMMA | |
| 62-0072 | 68 | 0 | 33.8 | 36° | PMMA | |
| 62-0074 | 68 | 0 | 33.8 | 60° | PMMA |
