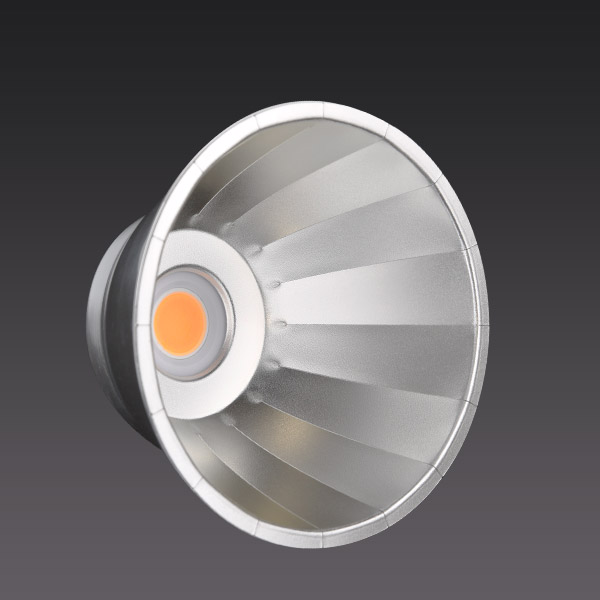

GJ-A Series

98% Satin Glow Reflector

Achieves an output efficiency of up to 98%, improving upon traditional reflectors by 5% to 8%.
Utilizes high-reflectivity frosted materials for high efficiency and a soft metallic finish.
Housing version allows for secure locking.
Significantly enhance installation convenience.

Product Video

Retail, Shops, Exhibition Area, Office.

Model	OD	Hole	H	FWHM	Material
1-1806-LM	35	13.7	15.4	18°	AL
1-1807-LM	35	13.7	15.4	24°	AL
1-1808-LM	35	13.7	15.4	38°	AL
1-1809-LM	35	13.7	15.4	55°	AL
1-1754-LM	45	18	19	19°	AL
1-1755-LM	45	18	19	24°	AL
1-1756-LM	45	18	19	36°	AL
1-1757-LM	45	18	19	55°	AL
1-1758-LM2	50	18	21.6	18°	AL
1-1758-LM	50	23.5	21.6	21°	AL
1-1759-LM2	50	18	21.6	24°	AL
1-1759-LM	50	23.5	21.6	28°	AL
1-1760-LM2	50	18	21.6	36°	AL
1-1760-LM	50	23.5	21.6	38°	AL
1-1761-LM2	50	18	21.6	55°	AL
1-1761-LM	50	23.5	21.6	55°	AL
2-3110-LM	65	25	34	18°	AL
2-3111-LM	65	25	34	24°	AL
2-3112-LM	65	25	34	38°	AL
2-3113-LM	65	25	34	60°	AL
2-3114-LM	69	25	35	18°	AL
2-3115-LM	69	25	35	24°	AL
2-3116-LM	69	25	35	38°	AL
2-3117-LM	69	25	35	55°	AL
2-2887-L	75	23	44	15°	AL
2-2887-L2	75	25	43	18°	AL
2-2870-L	75	23	44	24°	AL
2-2870-L2	75	25	43	24°	AL
2-2873-L	75	23	44	36°	AL
2-2873-L2	75	25	43	38°	AL
2-2890-L2	75	25	43	60°	AL
2-2890-L	75	23	44	60°	AL
3-2927-L	85	23	52	15°	AL
3-2927-LM2	85	25	51	15°	AL
3-2912-LM2	85	25	51	24°	AL
3-3012-LM	85	29	51	24°	AL
3-2912-L	85	23	52	25°	AL
3-3013-LM	85	29	51	32°	AL
3-2915-L	85	23	52	35°	AL
3-2915-LM3	85	25	51	38°	AL
3-3014-LM	85	29	51	40°	AL
3-3015-LM	85	29	51	55°	AL
3-2924-L	85	23	52	60°	AL
3-2924-LM2	85	25	51	60°	AL
3-2930-LM3	92	25	49	12°	AL
3-2930-L	92	23	50	15°	AL
3-2918-LM3	92	25	49	24°	AL
3-2918-L	92	23	50	25°	AL
3-2921-L	92	23	50	36°	AL
3-2921-LM3	92	25	49	38°	AL
3-2947-L	92	23	50	60°	AL
3-2947-LM3	92	25	49	60°	AL
