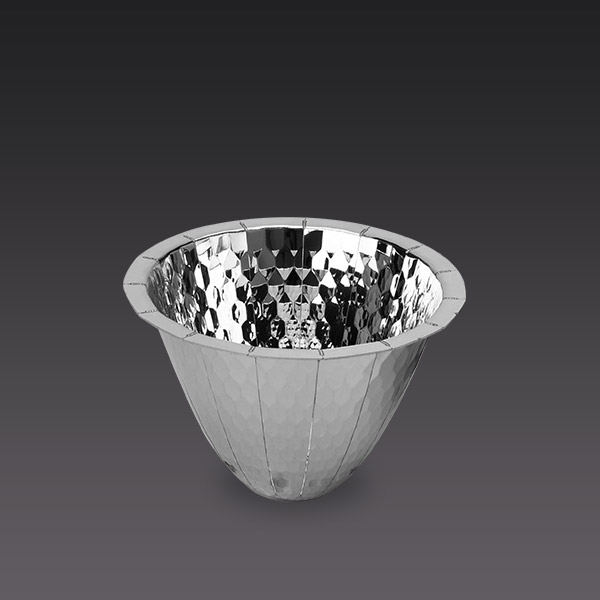

FA Series

96% Efficiency Reflector

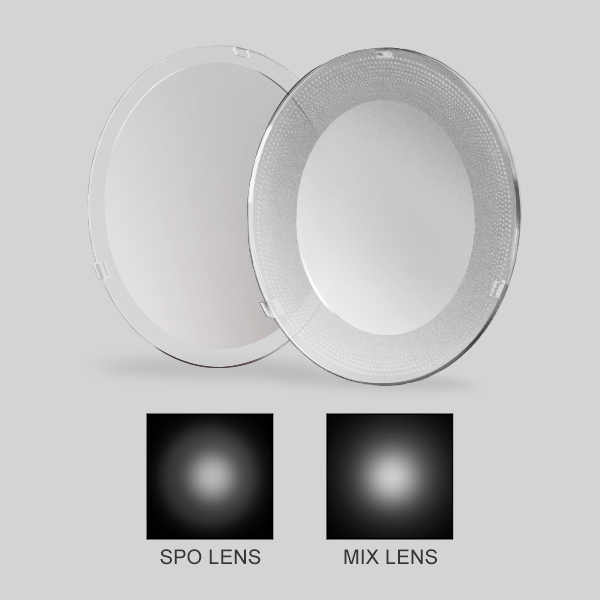

Optional SPO or MIX optical microstructure lenses solve the problem of dark areas in traditional reflector apertures and control visual glare. Even with the addition of microstructure lenses, light output efficiency can still reach up to 94%.
The FA series has a light output rate of up to 96%, while the FA+ series includes an aluminum fixing device that securely attaches to the bracket and saves installation time.
Compatible with ZHAGA holder
This Series is designed for customers who demand high-quality light spots and efficiency.
Available in various specifications, including D35, D45, D50, D63, & D75;
Beam angles of 18°, 24°, 38°, & 50°.

Product Video

Retail, Shops, Exhibition Area, Office.

Model	OD	Hole	H	FWHM	Material
1-1298-L	50	12.6	33.1	17°	AL
1-1207-L	50	15	33.1	27°	AL
1-1302-L	50	15	33.1	42°	AL
1-1306-L	50	15	33.1	50°	AL
2-2561-L	63	21	40	20°	AL
2-2565-L	63	21	40	25°	AL
2-2456-L	63	21	40	36°	AL
2-2569-L	63	21	40	46°	AL
2-2751-L	69	20.5	44	18°	AL
2-2755-L	69	20.5	44	25°	AL
2-2759-L	69	19.6	44	39°	AL
2-2763-L	69	19.6	44	52°	AL
2-2518-L	75	19.5	51.5	20°	AL
2-2519-L	75	19.5	51.5	28°	AL
2-2520-L	75	19.6	51.5	40°	AL
2-2521-L	75	19.6	51.5	49°	AL
