3-1550-A3
AK Series - Link Mount Reflector
LED
CLM-14-AC30
Diameter
85 mm
Hole
25 mm
Height
51 mm

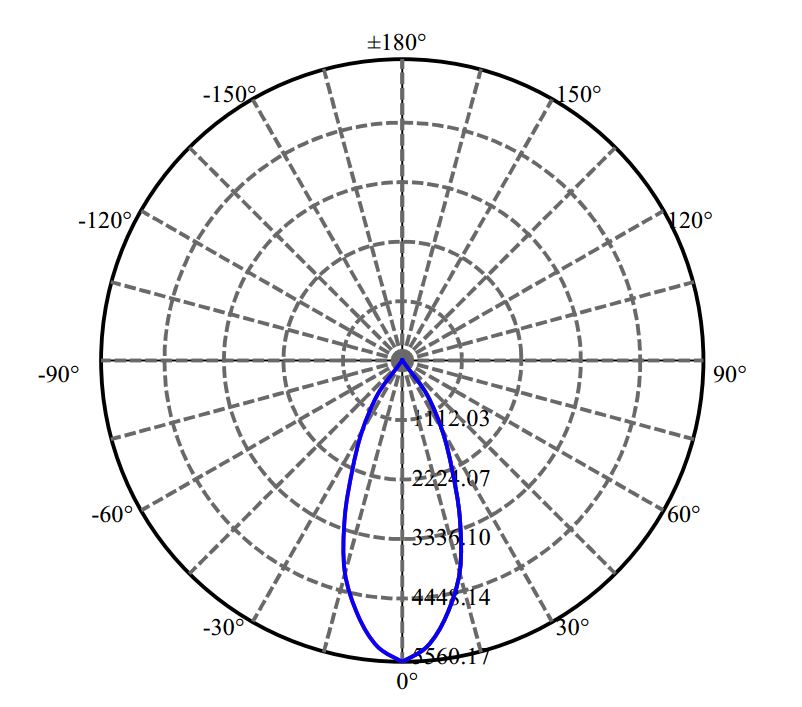

FWHM
45°
LES
14.5
Material
AL
Fastening
Metal Adapter + Holder
Application
Spot Light
Remark
Description
- Wide size range to fit TE &NATA poke-in holder.
- No soldering cost, high working efficiency.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| OSRAM OPTO | SOLERIQ S13 G2 | 85 | 25 | 51 | 46° | 92.76.365.00 99.02.73.172 |
|
| OSRAM OPTO | SOLERIQ S19 | 85 | 25 | 51 | 45° | 92.76.365.00 | |
| OSRAM OPTO | SOLERIQ S15 | 85 | 25 | 51 | 43° | 92.76.365.00 99.02.73.172 |
|
| Tridonic | SLE G7 15MM | 85 | 25 | 51 | 43° | 92.76.365.00 99.02.73.172 |
|
| Tridonic | SLE G7 13MM | 85 | 25 | 51 | 43° | 92.76.365.00 99.02.73.172 |
|
| SAMSUNG | LC026D | 85 | 25 | 51 | 45° | 92.76.365.00 99.02.73.172 |
|
| Nichia | NFCLJ060B | 85 | 25 | 51 | 43° | 92.76.365.00 | |
| Lumileds | 1208 | 85 | 25 | 51 | 44° | 92.76.365.00 | |
| Luminus | CXM-11-AC30 | 85 | 25 | 51 | 42° | 92.76.365.00 99.02.73.172 |
|
| Luminus | CXM-14-AC40 | 85 | 25 | 51 | 44° | 92.76.365.00 99.02.73.172 |
|
| Osram | PL-CORE-G7 3000 L15 H1 | 85 | 25 | 51 | 45° | 92.76.365.00 | |
| Cree | CMT1922 | 85 | 25 | 51 | 45° | 92.76.365.00 99.02.73.172 |
|
| Cree | CXA2530 | 85 | 25 | 51 | 45° | 92.76.365.00 | |
| Cree | CXA1830 | 85 | 25 | 51 | 45° | 92.76.365.00 | |
| Citizen | CLU720 | 85 | 25 | 51 | 42° | 92.76.365.00 99.02.73.172 |
|
| Citizen | CLU038 | 85 | 25 | 51 | 43° | 92.76.365.00 99.02.73.172 |
|
| Bridgelux | V13B | 85 | 25 | 51 | 43° | 92.76.365.00 99.02.73.172 |
|
| Bridgelux | V18B | 85 | 25 | 51 | 45° | 92.76.365.00 |
