AK Series

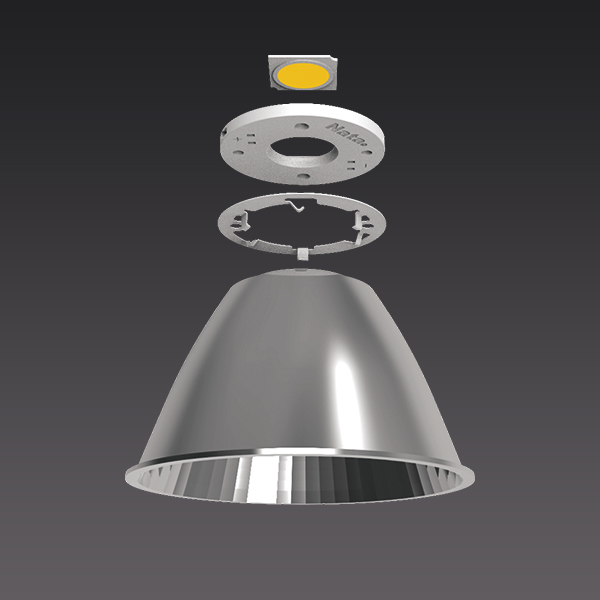

Link Mount Reflector
- Wide size range to fit TE &NATA poke-in holder.
- No soldering cost, high working efficiency.
Product List
| Model | OD | Hole | H | FWHM | Material | |
|---|---|---|---|---|---|---|
| 2-1120-A3 | 75 | 25 | 43 | 15° | AL | |
| 2-1536-E | 75 | 23.2 | 43.4 | 15° | AL | |
| 2-1121-A4 | 75 | 25 | 42.8 | 26° | AL | |
| 2-1701-A | 75 | 25 | 43.8 | 26° | AL | |
| 2-1537-E | 75 | 23.2 | 43.4 | 34° | AL | |
| 2-1702-A | 75 | 25 | 43.6 | 36° | AL | |
| 2-1122-A4 | 75 | 25 | 43 | 36° | AL | |
| 2-1703-A | 75 | 25 | 43.8 | 44° | AL | |
| 2-1538-E | 75 | 23.2 | 43 | 60° | AL | |
| 3-1548-A3 | 85 | 25 | 51 | 15° | AL | |
| 3-1915-E | 85 | 23.2 | 51.4 | 15° | AL | |
| 3-1916-E | 85 | 23.2 | 51.4 | 22° | AL | |
| 3-1549-A3 | 85 | 25 | 51 | 24° | AL | |
| 3-2054-A | 85 | 25 | 51.8 | 24° | AL | |
| 3-2055-A | 85 | 25 | 51.8 | 30° | AL | |
| 3-1550-A3 | 85 | 25 | 51 | 46° | AL | |
| 3-2056-A | 85 | 25 | 51.8 | 50 ° | AL | |
| 3-1920-E | 85 | 23.2 | 51 | 58° | AL | |
| 3-1545-A3 | 95 | 25 | 54.8 | 12˚° | AL | |
| 3-1917-E | 95 | 23.2 | 55.4 | 25° | AL | |
| 3-1546-A3 | 95 | 25 | 55 | 25˚° | AL | |
| 3-1918-E | 95 | 23.2 | 55.4 | 38° | AL | |
| 3-1547-A3 | 95 | 25 | 55 | 36° | AL | |
| 4-2108-A | 111 | 23.2 | 65 | 11° | AL | |
| 4-2109-E | 111 | 23.2 | 64.9 | 24° | AL | |
| 4-2129-E | 111 | 23.2 | 64.9 | 38° | AL |
