61-0135
DA Series - Low Glare Twist Lock Lens
LED
CXM-4-AC40
Diameter
28 mm
Hole
13.6 mm
Height
13.8 mm

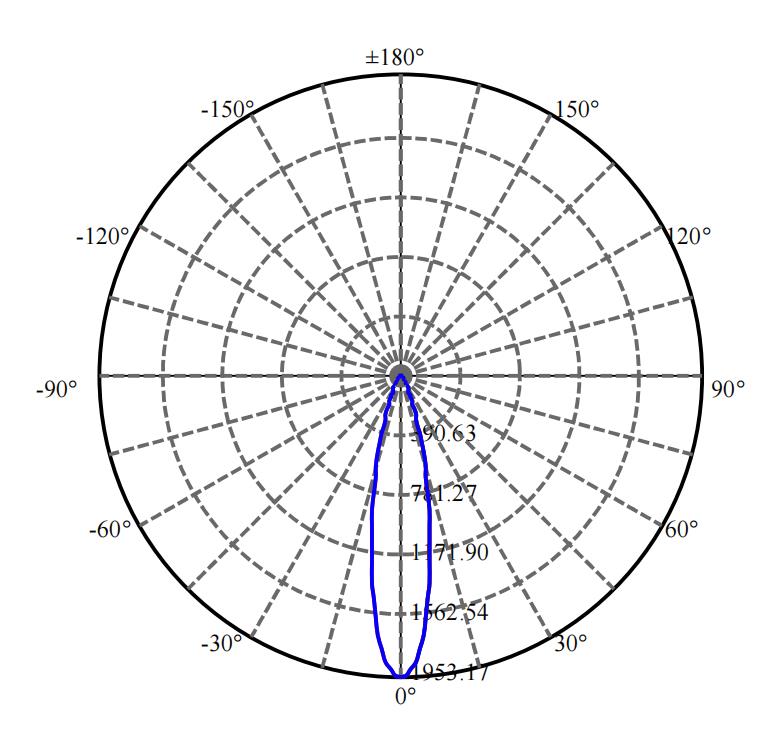

FWHM
22°
LES
4.5
Material
PMMA
Fastening
Holder
Application
Spot Light, Down Light
Remark
COB Lens
Description
- Evenly light shape, no color levels.
- Black holder to reduce the glare.
- Easy twist-lock installation.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Luminus | CXM-3-AC40 | 28 | 13.6 | 13.8 | 21° | 92.70.307.00 | |
| Luminus | CXM-6-AC40 | 28 | 13.6 | 13.8 | 26° | 92.70.307.00 | |
| Cree | CXA1310 | 28 | 13.6 | 13.8 | 26° | 92.70.307.00 | |
| Citizen | CLU702 | 28 | 13.6 | 13.8 | 26° | 92.70.307.00 | |
| Citizen | CLU701 | 28 | 13.6 | 13.8 | 25° | 92.70.307.00 | |
| Citizen | CLU7B2 | 28 | 13.6 | 13.8 | 20° | 92.70.307.00 | |
| Citizen | CLU7A2 | 28 | 13.6 | 13.8 | 22° | 92.70.307.00 | |
| Bridgelux | V3HD | 28 | 13.6 | 13.8 | 17° | 92.70.307.00 | |
| Bridgelux | V6-HD | 28 | 13.6 | 13.8 | 27° | 92.70.307.00 | |
| Bridgelux | V4-HD | 28 | 13.6 | 13.8 | 22° | 92.70.308.00 |
Accessory
