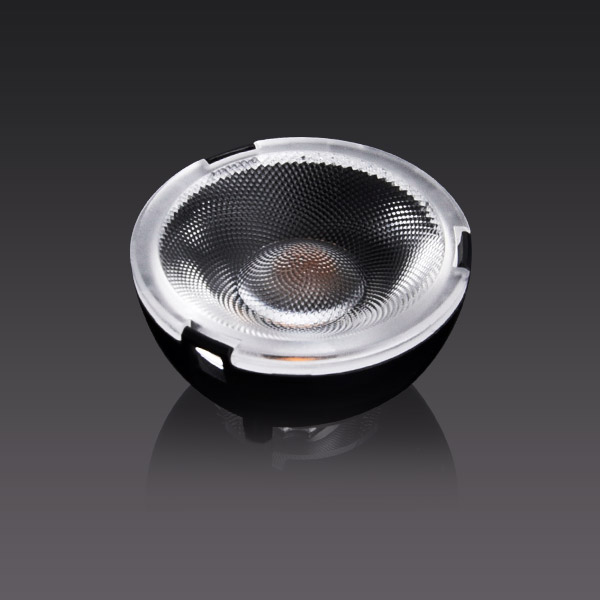

FD Series

Wall-Washer Lens

  • Full optical surface and micro-structured design for a clear and transparent appearance.

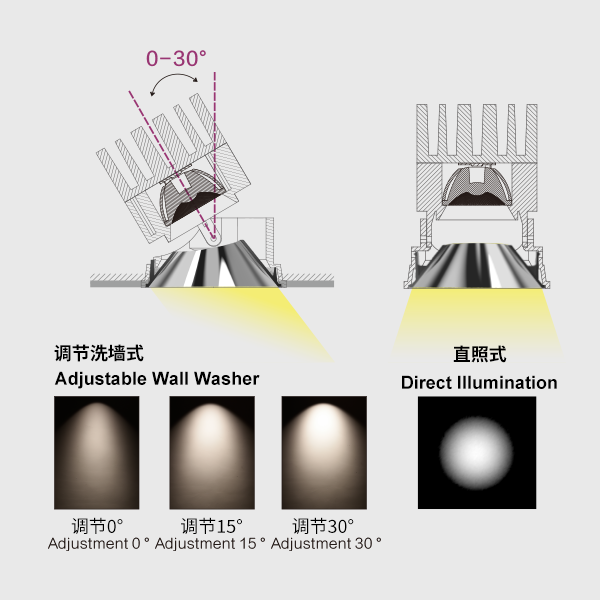

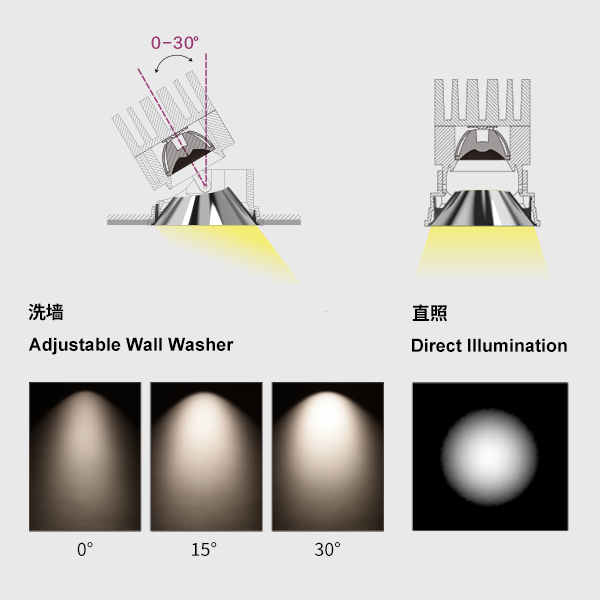

  • Maintains excellent light distribution for both direct lighting and wall washing.
  • Lens efficiency of 90%, with overall luminaire efficiency at 85%.
  • UGR < 12.
  • Compatible with dual-color LEDs.

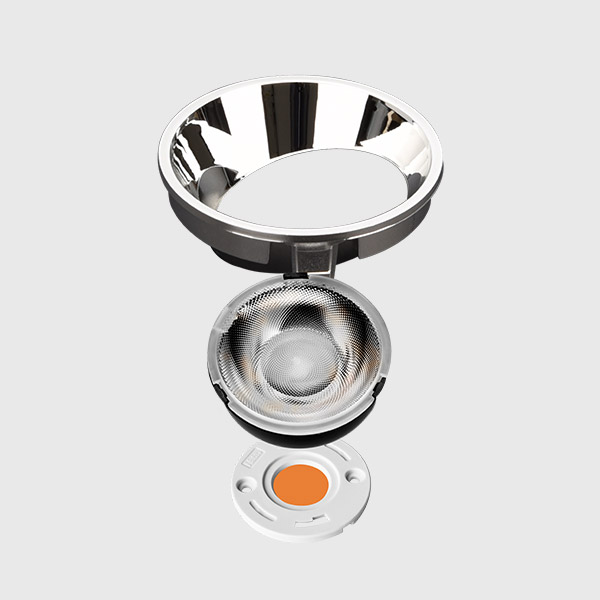

  • Features an easy-lock assembly structure.

Product List

Model OD Hole H FWHM Material
61-0166 28 12.2 14.5 16° PMMA
61-0168 28 9.9 14.5 23° PMMA
61-0170 28 10.7 14.5 35° PMMA
61-0172 35 12.8 17.5 16° PMMA
61-0174 35 12 17.5 24° PMMA
61-0176 35 12.4 17.5 36° PMMA
61-0200 45 14.9 21 15° PMMA
61-0202 45 14.9 21 24° PMMA
61-0204 45 16 21 36° PMMA
