61-0094
DA Series - Low Glare Twist Lock Lens
LED
CXA1304
Diameter
35 mm
Hole
10 mm
Height
19.7 mm

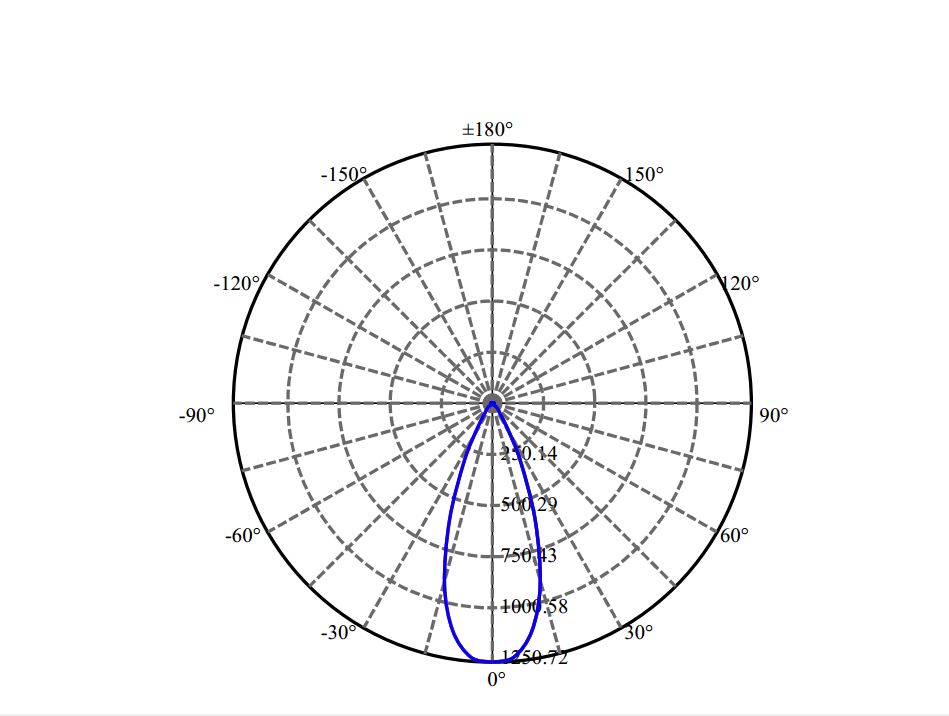

FWHM
39°
LES
6.0
Material
PMMA
Fastening
Holder
Application
Spot Light, Down Light
Remark
Description
- Evenly light shape, no color levels.
- Black holder to reduce the glare.
- Easy twist-lock installation.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Luminus | CXM-4-AC40 | 35 | 10 | 19.7 | 36° | 92.70.267.00 | |
| Luminus | CXM-3-AC40 | 35 | 10 | 19.7 | 36° | 92.70.267.00 | |
| Luminus | CXM-6-AC40 | 35 | 10 | 19.7 | 40° | 92.70.267.00 | |
| Bridgelux | V4-HD | 35 | 10 | 19.7 | 38° | 92.70.272.00 | |
| Bridgelux | V6-HD | 35 | 10 | 19.7 | 40° | 92.70.267.00 | |
| Citizen | CLU7A2 | 35 | 10 | 19.7 | 36° | 92.70.267.00 | |
| Citizen | CLU7B2 | 35 | 10 | 19.7 | 36° | 92.70.267.00 | |
| Citizen | CLU700 | 35 | 10 | 19.7 | 40° | 92.70.267.00 | |
| Edison | 2PHM10WW38P55020 | 35 | 10 | 19.7 | 38° | 92.70.267.00 |
