3-1547-A3
AK Series - Link Mount Reflector
LED
CLM-14-AC30
Diameter
95 mm
Hole
25 mm
Height
55 mm

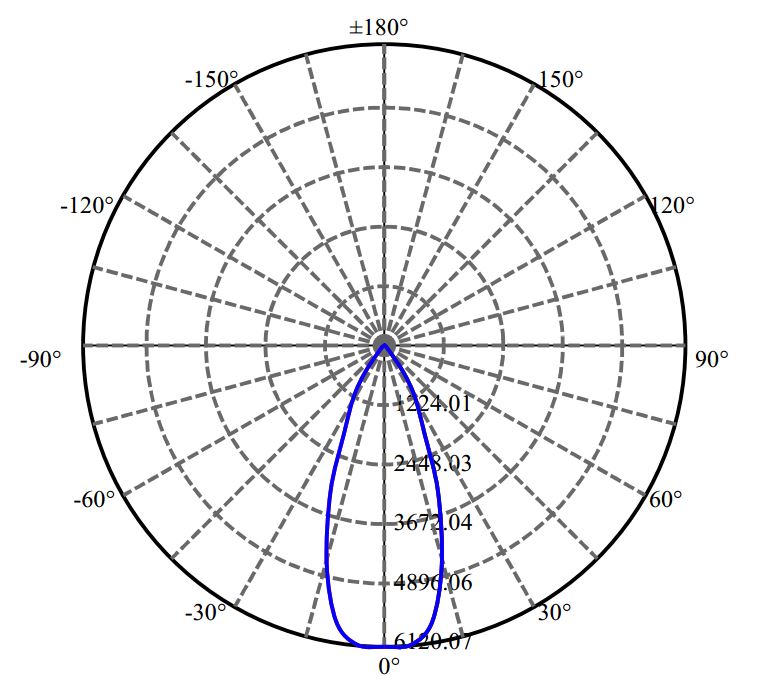

FWHM
40°
LES
14.5
Material
AL
Fastening
Metal Adapter + Holder
Application
Spot Light
Remark
Description
- Wide size range to fit TE &NATA poke-in holder.
- No soldering cost, high working efficiency.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| OSRAM OPTO | SOLERIQ S13 G2 | 95 | 25 | 55 | 36° | 92.76.365.00 99.02.73.172 |
|
| OSRAM OPTO | SOLERIQ S19 | 95 | 25 | 55 | 40˚° | 92.76.365.00 | |
| OSRAM OPTO | SOLERIQ S15 | 95 | 25 | 55 | 40° | 92.76.365.00 99.02.73.172 |
|
| Tridonic | SLE G7 15MM | 95 | 25 | 55 | 43° | 92.76.365.00 99.02.73.172 |
|
| Tridonic | SLE G7 13MM | 95 | 25 | 55 | 40° | 92.76.365.00 99.02.73.172 |
|
| Luminus | CXM-14-AC40 | 95 | 25 | 55 | 40° | 92.76.365.00 99.02.73.172 |
|
| Luminus | CXM-11-AC30 | 95 | 25 | 55 | 38° | 92.76.365.00 99.02.73.172 |
|
| Lumileds | 1208 | 95 | 25 | 55 | 38° | 92.76.365.00 | |
| Cree | CMT1922 | 95 | 25 | 55 | 40° | 92.76.365.00 99.02.73.172 |
|
| Cree | CXA1816 | 95 | 25 | 55 | 38° | 92.76.365.00 | |
| Cree | CXA2530 | 95 | 25 | 55 | 40° | 92.76.365.00 | |
| Cree | CXA1830 | 95 | 25 | 55 | 40° | 92.76.365.00 | |
| Citizen | CLU720 | 95 | 25 | 55 | 36° | 92.76.365.00 99.02.73.172 |
|
| Citizen | CLU038 | 95 | 25 | 55 | 41° | 92.76.365.00 99.02.73.172 |
|
| Bridgelux | V13B | 95 | 25 | 55 | 40° | 92.76.365.00 99.02.73.172 |
|
| Bridgelux | V9-HD | 95 | 25 | 55 | 35° | 92.76.365.00 99.02.73.172 |
