3-1545-A3
AK Series - Link Mount Reflector
LED
V13B
Diameter
95 mm
Hole
25 mm
Height
54.8 mm

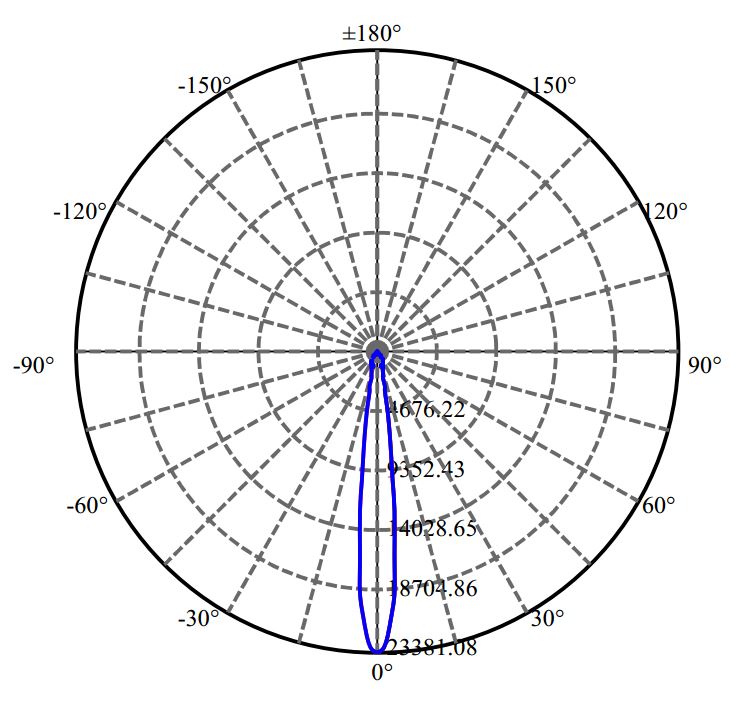

FWHM
13°
LES
13.0
Material
AL
Fastening
Metal Adapter + Holder TE 2213254-1
Application
Spot Light
Remark
Description
- Wide size range to fit TE &NATA poke-in holder.
- No soldering cost, high working efficiency.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| OSRAM OPTO | SOLERIQ S13 G2 | 95 | 25 | 54.8 | 12˚° | 92.76.365.00 99.02.73.172 |
|
| OSRAM OPTO | SOLERIQ S19 | 95 | 25 | 54.8 | 15˚° | 92.76.365.00 | |
| OSRAM OPTO | SOLERIQ S15 | 95 | 25 | 54.8 | 13° | 92.76.365.00 99.02.73.172 |
|
| SAMSUNG | LC026D | 95 | 25 | 54.8 | 15° | 92.76.365.00 99.02.73.172 |
|
| Tridonic | SLE G7 15MM | 95 | 25 | 54.8 | 15° | 92.76.365.00 99.02.73.172 |
|
| Tridonic | SLE G7 13MM | 95 | 25 | 54.8 | 12° | 92.76.365.00 99.02.73.172 |
|
| Osram | PL-CORE-G7 3000 L15 H1 | 95 | 25 | 54.8 | 15° | 92.76.365.00 | |
| Cree | CXA2530 | 95 | 25 | 54.8 | 17° | 92.76.365.00 | |
| Cree | CMT1922 | 95 | 25 | 54.8 | 14° | 92.76.365.00 99.02.73.172 |
|
| Cree | CXA1816 | 95 | 25 | 54.8 | 10° | 92.76.365.00 | |
| Cree | CXA1830 | 95 | 25 | 54.8 | 13° | 92.76.365.00 | |
| Lumens | EDC_47_10W | 95 | 25 | 54.8 | 11° | 92.76.365.00 | |
| Lumileds | 1208 | 95 | 25 | 54.8 | 15° | 92.76.365.00 | |
| Luminus | CXM-11-AC30 | 95 | 25 | 54.8 | 11° | 92.76.365.00 99.02.73.172 |
|
| Luminus | CXM-14-AC40 | 95 | 25 | 54.8 | 15° | 92.76.365.00 99.02.73.172 |
|
| Luminus | CLM-14-AC30 | 95 | 25 | 54.8 | 15° | 92.76.365.00 99.02.73.172 |
|
| Bridgelux | V18B | 95 | 25 | 54.8 | 18° | 92.76.365.00 | |
| Bridgelux | V9-HD | 95 | 25 | 54.8 | 8° | 92.76.365.00 99.02.73.172 |
|
| Nichia | NFCLJ060B | 95 | 25 | 54.8 | 10° | 92.76.365.00 | |
| Citizen | CLU720 | 95 | 25 | 54.8 | 11° | 92.76.365.00 99.02.73.172 |
|
| Citizen | CLU038 | 95 | 25 | 54.8 | 13° | 92.76.365.00 99.02.73.172 |
