2-2687-L
EW-G2 Series - Optic Optimized Reflector
LED
CLU038
Diameter
75 mm
Hole
21.5 mm
Height
50.5 mm

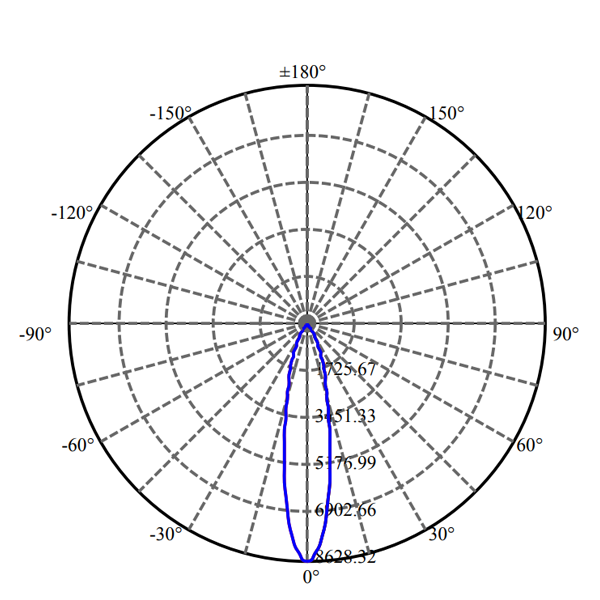

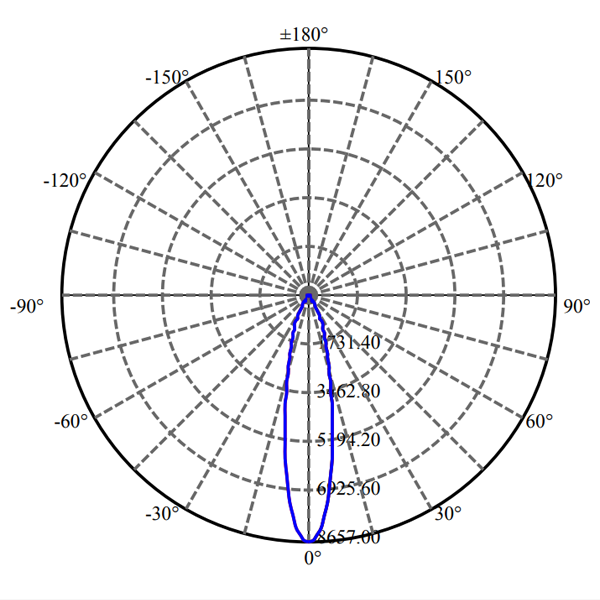

FWHM
24°
LES
15.0
Material
AL
Fastening
Holder
Application
Spot Light, Down Light
Remark
BJB 47.360.5010
Green Gems Gh36D-B40
Green Gems Gh36D-B40
Description
- The EW-G2 is an upgraded NASA optical platform product that allows for a seamless interchangeability of products between platforms.
- This series is specifically designed for customers who pursue high-quality light spots.
- Featuring meticulously designed SPO & MIX optical microstructure lenses, it effectively solves the issue of dark areas in traditional glare shields and achieves controlled glare reduction.
- The optical microstructure lenses allow switching between two different light spot effects without needing to replace the reflector, meeting various application requirements and reducing inventory types.
- The reflector and holder are assembled with easy twist-lock mechanism to reduce labor cost.
- The reflector made by high-purity aluminum, offers excellent high-temperature and UV resistance. Aiding in cooling and extending the life cycle of the luminaire.
- Dimensions: D35, D45, D50, D63, D69, D75, D85, D95;
- Beam Angles: 17°, 24°, 36°, 45°
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Bridgelux | V13B | 75 | 21.5 | 50.5 | 24° | 92.70.412.00 92.70.398.00 |
|
| Bridgelux | V13B | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.412.00 |
|
| Cree | CXA1830 | 75 | 21.5 | 50.5 | 24° | 92.70.429.00 92.70.398.00 |
|
| Cree | CXA1830 | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.429.00 |
|
| LEDTEEN | P2141-036-1206-P3090-1 | 75 | 21.5 | 50.5 | 24° | 92.70.412.00 92.70.398.00 |
|
| LEDTEEN | P2141-036-1206-P3090-1 | 75 | 21.5 | 50.5 | 24° | 92.70.365.00 92.70.412.00 |
|
| Lumileds | 1205 | 75 | 21.5 | 50.5 | 24° | 92.70.411.00 92.70.398.00 |
|
| Lumileds | 1208 | 75 | 21.5 | 50.5 | 24° | 92.70.411.00 92.70.398.00 |
|
| Lumileds | 1205 | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.411.00 |
|
| Lumileds | 1208 | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.411.00 |
|
| Luminus | CXM-14-AC40 | 75 | 21.5 | 50.5 | 24° | 92.70.412.00 92.70.398.00 |
|
| Luminus | CXM-14-AC40 | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.412.00 |
|
| Nichia | NFCWJ108B-V3 | 75 | 21.5 | 50.5 | 24° | 92.70.411.00 92.70.398.00 |
|
| Nichia | NFCWJ120B-V3 | 75 | 21.5 | 50.5 | 24° | 92.70.411.00 92.70.398.00 |
|
| Nichia | NFCWJ108B-V3 | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.411.00 |
|
| Nichia | NFCWJ120B-V3 | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.411.00 |
|
| Nichia | NFCWJ130B-V3 | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.411.00 |
|
| Nichia | NFCWJ130B-V3 | 75 | 21.5 | 50.5 | 24° | 92.70.411.00 92.70.398.00 |
|
| Philips | FORTIMO SLM C 1208 L15 1919 G7N HE+ | 75 | 21.5 | 50.5 | 24° | 92.70.412.00 92.70.398.00 |
|
| Philips | FORTIMO SLM C 1208 L15 2024 G7 HE+ | 75 | 21.5 | 50.5 | 24° | 92.70.411.00 92.70.398.00 |
|
| Philips | FORTIMO SLM C 1210 L15 1919 G7N HE+ | 75 | 21.5 | 50.5 | 24° | 92.70.412.00 92.70.398.00 |
|
| Philips | FORTIMO SLM C 1205 L15 1919 G7N HE+ | 75 | 21.5 | 50.5 | 24° | 92.70.412.00 92.70.398.00 |
|
| Philips | FORTIMO SLM C 1208 L15 2024 G7 HE+ | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.411.00 |
|
| Philips | FORTIMO SLM C 1205 L15 1919 G7N HE+ | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.412.00 |
|
| Philips | FORTIMO SLM C 1210 L15 1919 G7N HE+ | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.412.00 |
|
| Philips | FORTIMO SLM C 1205 L13 2024 G7 HE+ | 75 | 21.5 | 50.5 | 21° | 92.70.365.00 92.70.411.00 |
|
| Philips | FORTIMO SLM C 1208 L15 1919 G7N HE+ | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.412.00 |
|
| Philips | FORTIMO SLM C 1205 L13 2024 G7 HE+ | 75 | 21.5 | 50.5 | 24° | 92.70.411.00 92.70.398.00 |
|
| Tridonic | SLE G7 15MM | 75 | 21.5 | 50.5 | 24° | 92.70.412.00 92.70.398.00 |
|
| Tridonic | SLE G7 15MM | 75 | 21.5 | 50.5 | 22° | 92.70.365.00 92.70.412.00 |
