61-0100
DA Series - Low Glare Twist Lock Lens
LED
SAWx10
Diameter
45 mm
Hole
13.2 mm
Height
25.2 mm

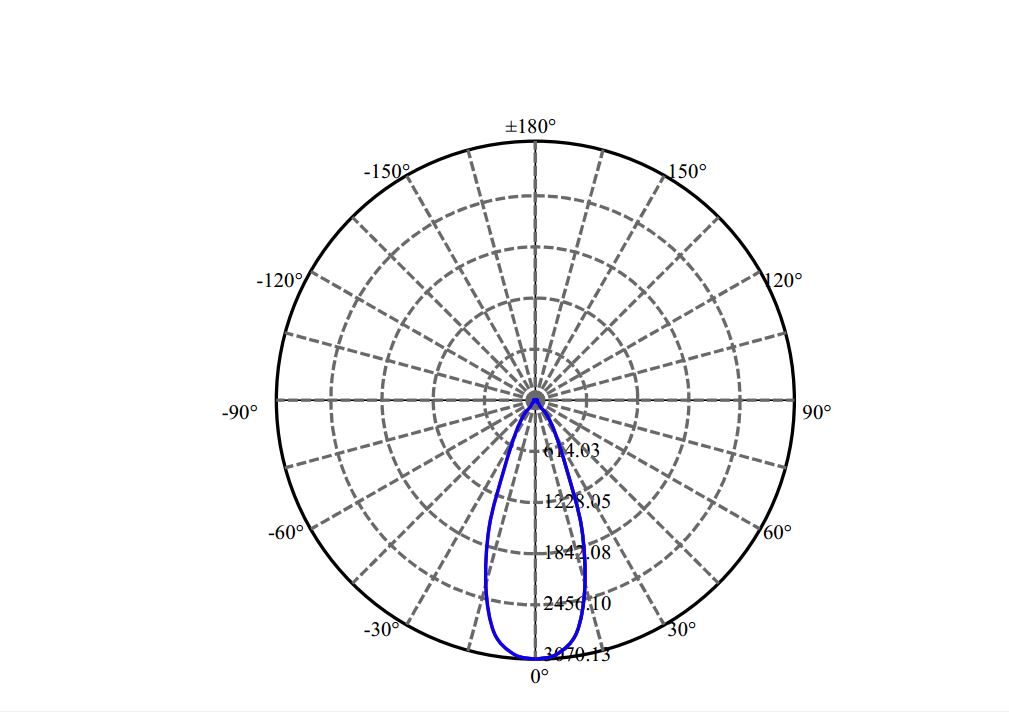

FWHM
41°
LES
9.8
Material
PMMA
Fastening
Holder
Application
Spot Light, Down Light
Remark
Description
- Evenly light shape, no color levels.
- Black holder to reduce the glare.
- Easy twist-lock installation.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Luminus | CXM-6-AC40 | 45 | 13.2 | 25.2 | 38° | 92.70.234.00 | |
| Luminus | CXM-9-TC40 | 45 | 13.2 | 25.2 | 41° | 92.70.234.00 | |
| Lumileds | 1202s | 45 | 13.2 | 25.2 | 38° | 92.70.273.00 | |
| Citizen | CLU028 | 45 | 13.2 | 25.2 | 39° | 92.70.234.00 | |
| Citizen | CLU700 | 45 | 13.2 | 25.2 | 38° | 92.70.234.00 | |
| Bridgelux | V6-HD | 45 | 13.2 | 25.2 | 38° | 92.70.234.00 | |
| Bridgelux | V10 | 45 | 13.2 | 25.2 | 40° | 92.70.234.00 | |
| Cree | CXA1304 | 45 | 13.2 | 25.2 | 38° | 92.70.234.00 | |
| Nichia | NTCWS024B-V3 | 45 | 13.2 | 25.2 | 38° | 92.70.273.00 | |
| Philips | SLM 1201 G7N | 45 | 13.2 | 25.2 | 40° | 92.70.234.00 | |
| Philips | SLM 1202 G7N | 45 | 13.2 | 25.2 | 40° | 92.70.234.00 | |
| Philips | SLM 1203 G7N | 45 | 13.2 | 25.2 | 40° | 92.70.234.00 | |
| Philips | SLM 1204 G7N | 45 | 13.2 | 25.2 | 40° | 92.70.234.00 | |
| Tridonic | SLE G7 9MM | 45 | 13.2 | 25.2 | 40° | 92.70.234.00 | |
| Xicato | XOB LES 9.8MM | 45 | 13.2 | 25.2 | 40° | 92.70.234.00 |
