2-2077-M
AU-G2 Series - Dark Light Reflector
LED
SLE G7 15MM
Diameter
70 mm
Hole
15 mm
Height
75.1 mm

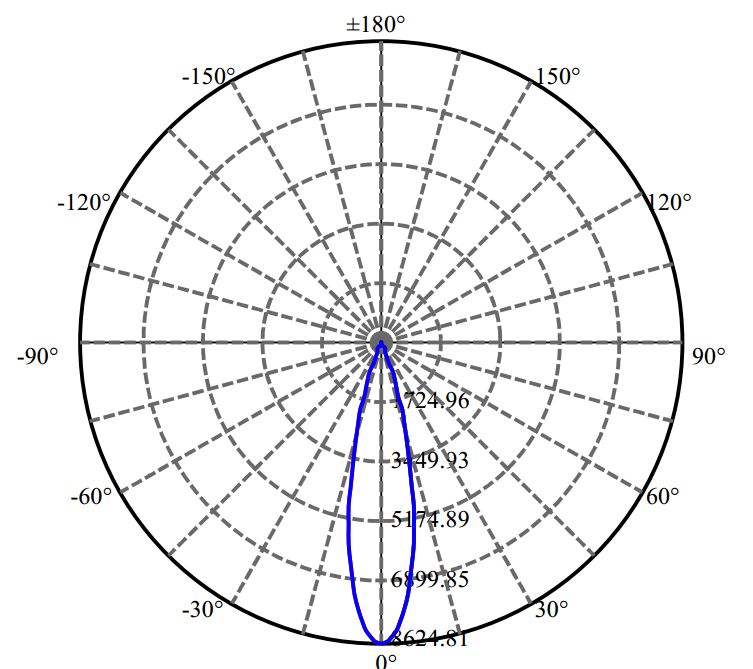

FWHM
23°
LES
15.0
Material
AL
Fastening
Metal Adapter
Application
Spot Light
Remark
Description
- The AU Series aluminum reflectors feature a deep cone structure that enhances the light utilization of the spill light, significantly improving issues such as spill light, black circles, central bright spots, and bright rings. The optimal optical ratio of the cup opening to height is 1:1, with a glare control > 60° and a UGR<19. The central light intensity is 10%-15% higher than that of conventional reflectors, effectively increasing light utilization. The twist-lock structure is compatible with ZHAGA standard holders.
- Diameters: D35, D45, D50, D70, D75.
- FWHM: 18°, 24°, 34°.
- Material: AL
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Citizen | CLU038 | 70 | 15 | 75.1 | 24° | 92.70.131.00 | |
| OSRAM OPTO | SOLERIQ S15 | 70 | 15 | 75.1 | 23° | 92.70.131.00 | |
| Lumileds | 1208 | 70 | 15 | 75.1 | 24° | 92.70.135.00 | |
| Bridgelux | V13B | 70 | 15 | 75.1 | 23° | 92.70.131.00 | |
| Cree | CXA1830 | 70 | 15 | 75.1 | 23° | 92.70.129.00 | |
| Luminus | CXM-14-AC40 | 70 | 15 | 75.1 | 24° | 92.70.131.00 |
