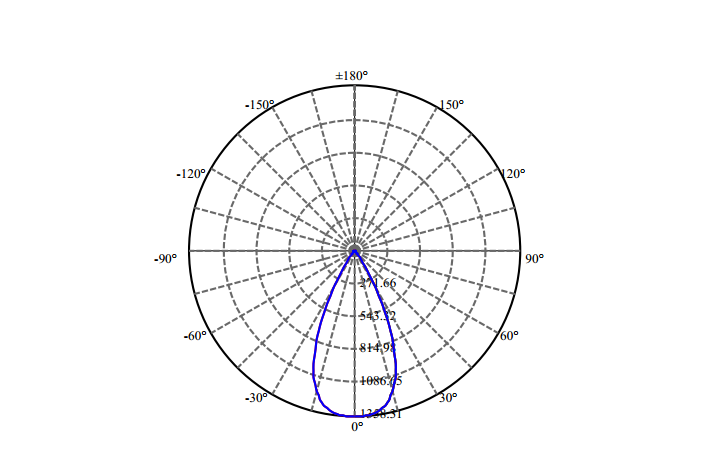

492°.PNG)

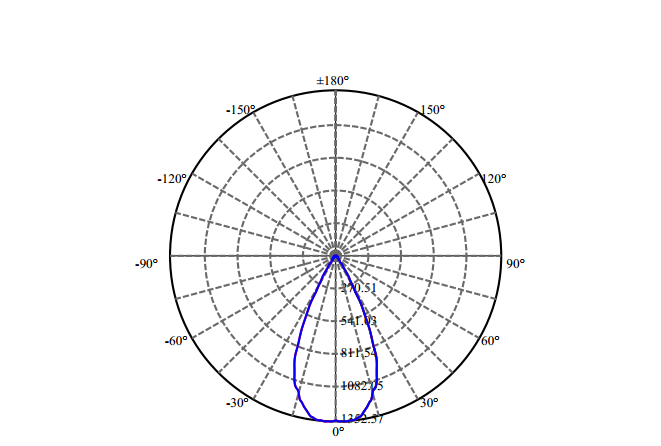

496°.PNG)
1-1376-L
FA+ Series - 96% Efficiency Reflector
LED
1202s
Diameter
35 mm
Hole
12.6 mm
Height
24 mm
FWHM
49°
LES
6.0
Material
AL
Fastening
Holder
Application
Spot Light
Remark
BJB 47.360.1020
Description
- Optional SPO or MIX optical microstructure lenses solve the problem of dark areas in traditional reflector apertures and control visual glare. Even with the addition of microstructure lenses, light output efficiency can still reach up to 94%.
- The FA series has a light output rate of up to 96%, while the FA+ series includes an aluminum fixing device that securely attaches to the bracket and saves installation time.
- Compatible with ZHAGA holder.
- This Series is designed for customers who demand high-quality light spots and efficiency.
- Available in various specifications, including D35, D45, D50, D63, & D75;
- Beam angles of 18°, 24°, 38°, & 50°
Product Video
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Bridgelux | V6-HD | 35 | 12.6 | 24 | 48° | 92.70.427.00 92.70.395.00 |
|
| Bridgelux | V6-HD | 35 | 12.6 | 24 | 48° | 92.70.427.00 | |
| Cree | CXA1304 | 35 | 12.6 | 24 | 47° | 92.70.427.00 92.70.395.00 |
|
| Cree | CXA1310 | 35 | 12.6 | 24 | 49° | 92.70.427.00 92.70.395.00 |
|
| Cree | CXA1304 | 35 | 12.6 | 24 | 48° | 92.70.427.00 | |
| Cree | CXA1310 | 35 | 12.6 | 24 | 49° | 92.70.427.00 | |
| Nichia | NTCWS024B-V3 | 35 | 12.6 | 24 | 49° | 92.70.409.00 92.70.395.00 |
|
| Nichia | NTCWS024B-V3 | 35 | 12.6 | 24 | 49° | 92.70.409.00 | |
| Luminus | CXM-6-AC40 | 35 | 12.6 | 24 | 47° | 92.70.427.00 92.70.395.00 |
|
| Luminus | CXM-6-AC40 | 35 | 12.6 | 24 | 48° | 92.70.427.00 |
