1-1062-N
DV Series - 360°Low Glare PC Reflector
LED
CXA1507
Diameter
50 mm
Hole
11.3 mm
Height
39 mm

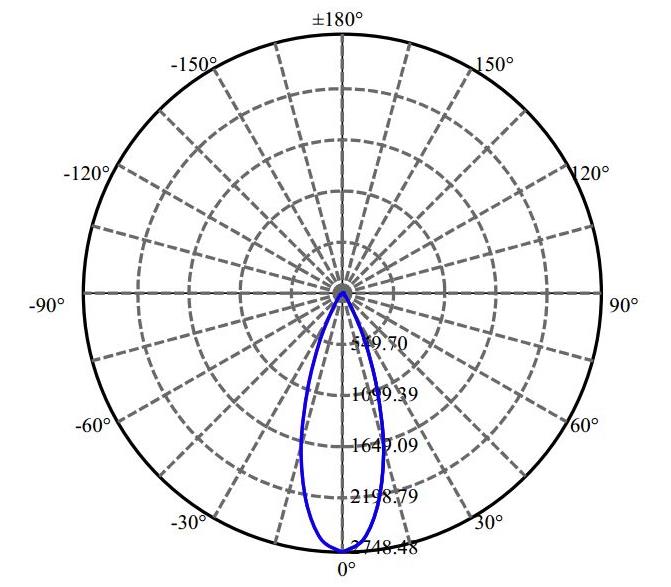

FWHM
35°
LES
9.8
Material
PC
Fastening
Holder 支架
Application
Spot Light
Remark
Description
- Innovative 360° freely installation (patented).
- Save time and labor cost for assembling.
- The size of reflector is slim and H:D ratio is 1:0.9. Small size but light quality is guaranteed.
- Evenly light transition, low glare UGR<16. White outer surface, fresh look and save top coat cost.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Tridonic | SLE G7 9MM | 50 | 11.3 | 39 | 37° | 92.70.246.00 | |
| Philips | SLM 1204 G7N | 50 | 11.3 | 39 | 36° | 92.70.246.00 | |
| Philips | SLM 1203 G7N | 50 | 11.3 | 39 | 36° | 92.70.246.00 | |
| Philips | SLM 1202 G7N | 50 | 11.3 | 39 | 36° | 92.70.246.00 | |
| Philips | SLM 1201 G7N | 50 | 11.3 | 39 | 35° | 92.70.246.00 | |
| SAMSUNG | LC009D | 50 | 11.3 | 39 | 38° | 92.70.246.00 | |
| SEOUL | SAWx10 | 50 | 11.3 | 39 | 38° | 92.70.246.00 | |
| Luminus | CXM-9-AC40 | 50 | 11.3 | 39 | 36° | 92.70.246.00 | |
| Cree | CXA1520 | 50 | 11.3 | 39 | 34° | 92.70.361.00 | |
| Cree | CXA1512 | 50 | 11.3 | 39 | 35° | 92.70.361.00 | |
| Cree | CMA1516 | 50 | 11.3 | 39 | 35° | 92.70.361.00 | |
| Citizen | CLU028 | 50 | 11.3 | 39 | 38° | 92.70.246.00 | |
| Bridgelux | C10 | 50 | 11.3 | 39 | 35° | 92.70.361.00 |
Accessory
