2-2164-M

AU-G2 Series - Dark Light Reflector

LED

NFCWJ120B-V3

Diameter

75 mm

Hole

14.5 mm

Height

69.2 mm

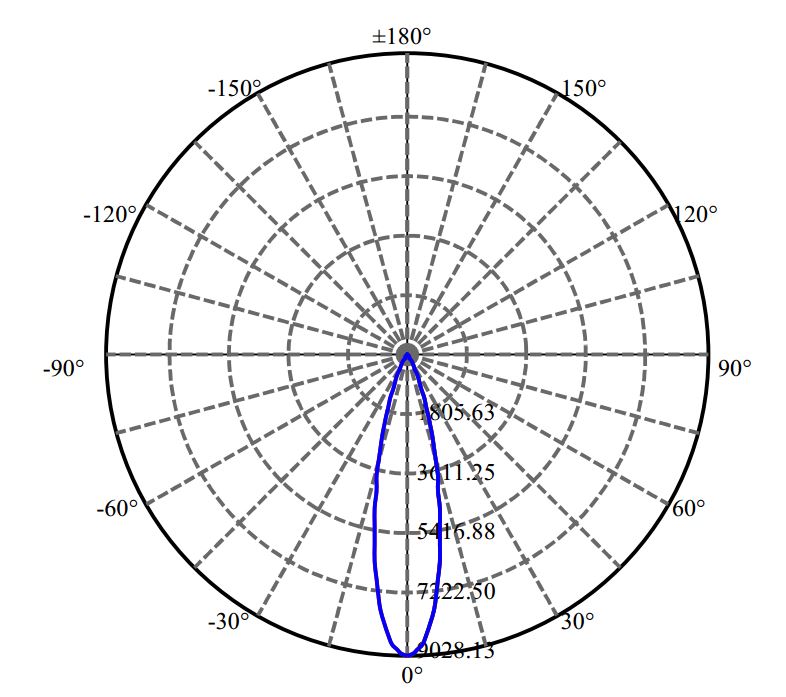

FWHM

25°

LES

14.6

Material

Fastening

Holder BJB47.360.5080

Application

Remark

Download

If you are interested in our products, please feel free to send us an email or fill out the inquiry form here. We will respond within 12 hours!

Description

The AU Series aluminum reflectors feature a deep cone structure that enhances the light utilization of the spill light, significantly improving issues such as spill light, black circles, central bright spots, and bright rings. The optimal optical ratio of the cup opening to height is 1:1, with a glare control > 60° and a UGR<19. The central light intensity is 10%-15% higher than that of conventional reflectors, effectively increasing light utilization. The twist-lock structure is compatible with ZHAGA standard holders.
Diameters: D35, D45, D50, D70, D75.
FWHM: 18°, 24°, 34°.
Material: AL

Brand	LED	OD	Hole	H	FWHM
Lumileds	1208	75	14.5	69.2	25°
Lumileds	1205	75	14.5	69.2	24°
Cree	CXA1830	75	14.5	69.2	25°
Nichia	NFCWJ130B-V3	75	14.5	69.2	25°
Nichia	NFCWJ108B-V3	75	14.5	69.2	25°
