1-1010-M

AU-G2 Series - Dark Light Reflector

LED

CXM-9-AC40

Diameter

50 mm

Hole

9.9 mm

Height

55.7 mm

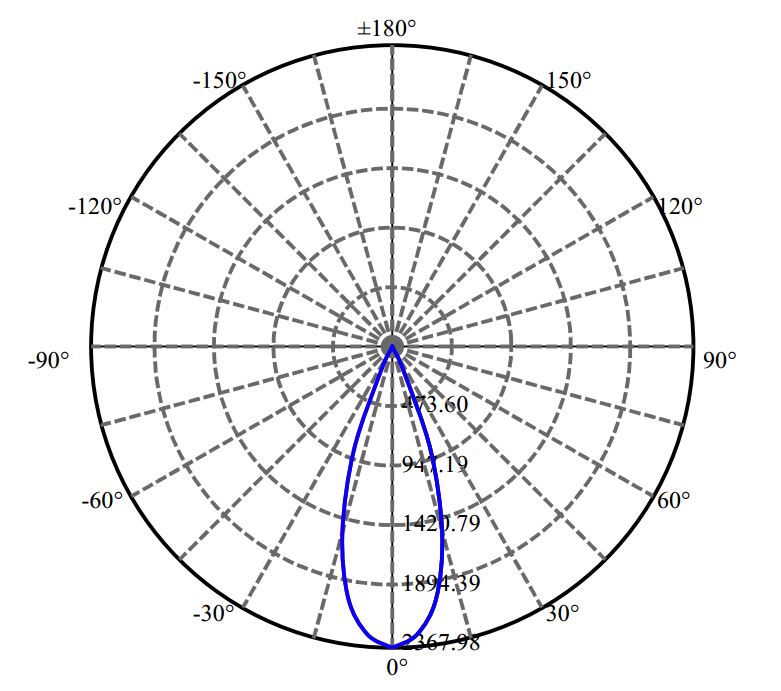

FWHM

35°

LES

9.8

Material

Fastening

Holder BJB 47.360.1020

Application

Spot Light

Remark

Download

If you are interested in our products, please feel free to send us an email or fill out the inquiry form here. We will respond within 12 hours!

Description

The AU Series aluminum reflectors feature a deep cone structure that enhances the light utilization of the spill light, significantly improving issues such as spill light, black circles, central bright spots, and bright rings. The optimal optical ratio of the cup opening to height is 1:1, with a glare control > 60° and a UGR<19. The central light intensity is 10%-15% higher than that of conventional reflectors, effectively increasing light utilization. The twist-lock structure is compatible with ZHAGA standard holders.
Diameters: D35, D45, D50, D70, D75.
FWHM: 18°, 24°, 34°.
Material: AL

Brand	LED	OD	Hole	H	FWHM	Accessory
Citizen	CLU028	50	9.9	55.7	34°
SAMSUNG	LC009D	50	9.9	55.7	33°
Tridonic	SLE G7 9MM	50	9.9	55.7	33°
Philips	SLM 1204 G7N	50	9.9	55.7	34°
Philips	SLM 1201 G7N	50	9.9	55.7	34°
Philips	SLM 1203 G7N	50	9.9	55.7	34°
Philips	SLM 1202 G7N	50	9.9	55.7	36°
Cree	CXA1512	50	9.9	55.7	33°	92.70.277.00
Lumileds	1203	50	9.9	55.7	33°
Bridgelux	V10B	50	9.9	55.7	33°
