14°20181212085854.JPG)
3-2115-N
FG Series - PC Reflector
LED
CXM-11-AC30
Diameter
85 mm
Hole
23 mm
Height
65 mm

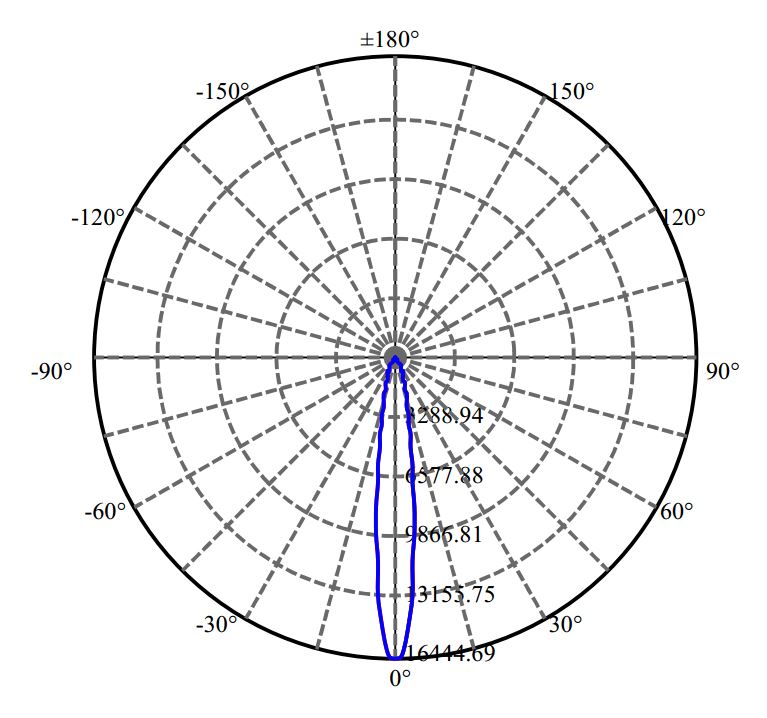

FWHM
14°
LES
11.7
Material
PC
Fastening
Holder
Application
Spot Light, Down Light
Remark
Description
- Injection and high efficiency vacuum metalized coating.
- Suitable for complex structure application.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Lumileds | 1205 | 85 | 23 | 65 | 15° | 92.70.135.00 92.70.146.00 |
|
| Lumileds | 1208 | 85 | 23 | 65 | 16° | 92.70.135.00 92.70.146.00 |
|
| Tridonic | SLE G7 13MM | 85 | 23 | 65 | 15° | 92.70.131.00 92.70.146.00 |
|
| Tridonic | SLE G7 15MM | 85 | 23 | 65 | 17° | 92.70.131.00 92.70.146.00 |
|
| Luminus | CHM-9 XH20 | 85 | 23 | 65 | 13° | 92.70.131.00 92.70.146.00 |
|
| Luminus | CXM-14-AC40 | 85 | 23 | 65 | 16° | 92.70.131.00 92.70.146.00 |
|
| SAMSUNG | LC0026D | 85 | 23 | 65 | 18° | 92.70.131.00 92.70.146.00 |
|
| OSRAM OPTO | SOLERIQ S15 | 85 | 23 | 65 | 15° | 92.70.131.00 92.70.146.00 |
|
| OSRAM OPTO | SOLERIQ S13 | 85 | 23 | 65 | 14° | 92.70.131.00 92.70.146.00 |
|
| Nichia | NFCWD096B-V3 | 85 | 23 | 65 | 15° | 92.70.135.00 92.70.146.00 |
|
| Nichia | NVEWJ048Z-V1 | 85 | 23 | 65 | 15° | 92.70.135.00 92.70.146.00 |
|
| Nichia | NFCWJ108B-V3 | 85 | 23 | 65 | 15° | 92.70.135.00 92.70.146.00 |
|
| Nichia | NFCWJ120B-V3 | 85 | 23 | 65 | 15° | 92.70.135.00 92.70.146.00 |
|
| Nichia | NFCWJ130B-V3 | 85 | 23 | 65 | 15° | 92.70.135.00 92.70.146.00 |
|
| Nichia | NFCWD084B-V3 | 85 | 23 | 65 | 15° | 92.70.135.00 92.70.146.00 |
|
| Citizen | CLU038 | 85 | 23 | 65 | 16° | 92.70.131.00 99.02.73.172 92.70.146.00 |
|
| Cree | CMT1922 | 85 | 23 | 65 | 15° | 92.70.131.00 99.02.73.172 92.70.146.00 |
|
| Cree | CXA1816 | 85 | 23 | 65 | 13° | 92.70.129.00 92.70.146.00 |
|
| Bridgelux | V13B | 85 | 23 | 65 | 15° | 92.70.131.00 92.70.146.00 |
