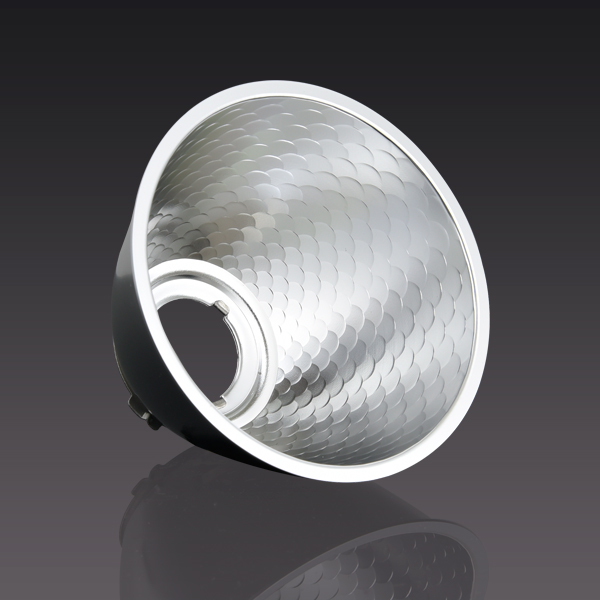

3-2324-M
BF Series - Scale Reflector
LED
1205
Diameter
85 mm
Hole
23 mm
Height
51.1 mm

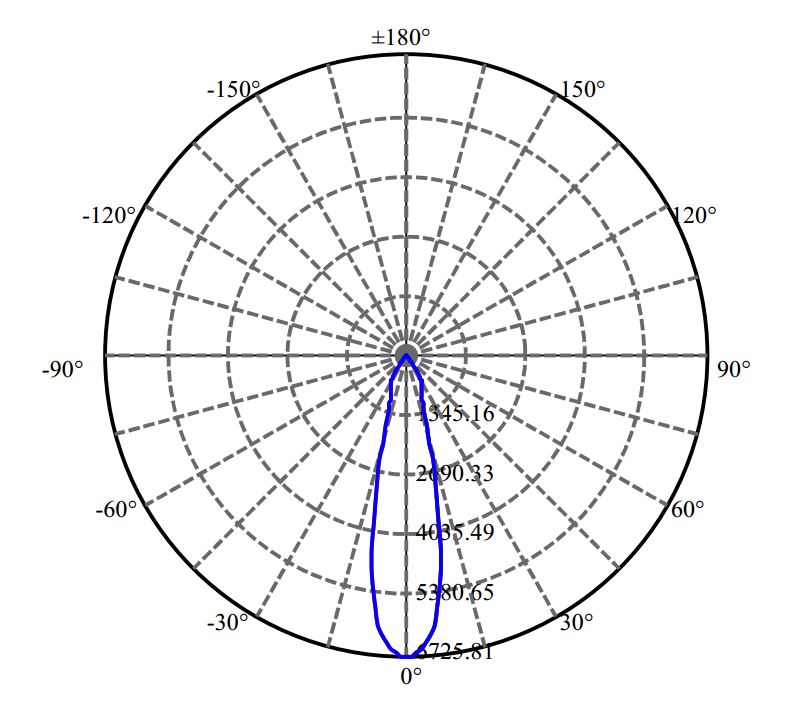

FWHM
24°
LES
13.0
Material
AL
Fastening
Holder
Application
Spot Light
Remark
Description
- Fresh look! Innovative patent scale texture.
- Beam angles: 15°, 24°, 36°and 60°.
- Professional Nata fixing system.
- Semi-specular finishing, good light shape and low glare.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Cree | CXA1830 | 85 | 23 | 51.1 | 23° | 92.70.129.00 | |
| OSRAM OPTO | SOLERIQ S13 | 85 | 23 | 51.1 | 20° | 92.70.131.00 | |
| Tridonic | SLE G7 13MM | 85 | 23 | 51.1 | 23° | 92.70.131.00 | |
| Luminus | CXM-14-AC40 | 85 | 23 | 51.1 | 25° | 92.70.131.00 | |
| Bridgelux | V13B | 85 | 23 | 51.1 | 23° | 92.70.131.00 |
Accessory
