3-2033-M
AR Series - Twist Lock Reflector
LED
SOLERIQ S13
Diameter
85 mm
Hole
23 mm
Height
51.2 mm

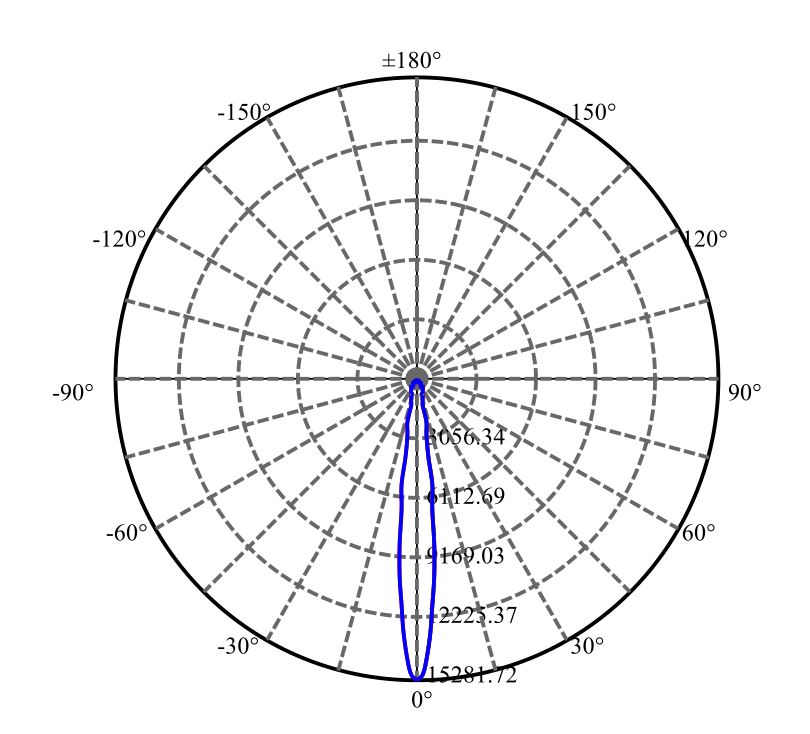

FWHM
13°
LES
13.0
Material
AL
Fastening
Holder
Application
Spot Light
Remark
Description
- Compatible for Nata optic parts. Fixation by twist lock, firm lock, low assembling cost!
- This range is patented products.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Bridgelux | V13B | 85 | 23 | 51.2 | 14° | 92.70.131.00 | |
| Bridgelux | BXRV-DR-1830-H-3000-A-13 | 85 | 23 | 51.2 | 15° | 92.70.135.00 | |
| Bridgelux | V9-HD | 85 | 23 | 51.2 | 11° | 92.70.131.00 | |
| Nichia | NFCWD084B-V3 | 85 | 23 | 51.2 | 14° | 92.70.135.00 | |
| Nichia | NFCWD096B-V3 | 85 | 23 | 51.2 | 14° | 92.70.135.00 | |
| Nichia | NFCWJ108B-V3 | 85 | 23 | 51.2 | 15° | 92.70.135.00 | |
| Nichia | NVEWJ048Z-V1 | 85 | 23 | 51.2 | 15° | 92.70.135.00 | |
| Nichia | NFCWJ120B-V3 | 85 | 23 | 51.2 | 15° | 92.70.135.00 | |
| Tridonic | SLE G7 13MM | 85 | 23 | 51.2 | 15° | 92.70.131.00 | |
| Tridonic | SLE G7 15MM | 85 | 23 | 51.2 | 15° | 92.70.131.00 | |
| OSRAM OPTO | SOLERIQ S15 | 85 | 23 | 51.2 | 14° | 92.70.131.00 | |
| OSRAM OPTO | SOLERIQ S19 | 85 | 23 | 51.2 | 18° | 92.70.134.00 | |
| SEOUL | SAWx15 | 85 | 23 | 51.2 | 15° | 92.70.131.00 | |
| Lumileds | 1208 | 85 | 23 | 51.2 | 16° | 92.70.135.00 | |
| Lumileds | 1205 | 85 | 23 | 51.2 | 15° | 92.70.135.00 | |
| Luminus | CXM-11-AC30 | 85 | 23 | 51.2 | 13° | 92.70.131.00 | |
| Luminus | CXM-14-AC40 | 85 | 23 | 51.2 | 16° | 92.70.131.00 | |
| Cree | CXA1830 | 85 | 23 | 51.2 | 14° | 92.70.129.00 | |
| Cree | CMT1922 | 85 | 23 | 51.2 | 15° | 92.70.131.00 | |
| Cree | CXA1820 | 85 | 23 | 51.2 | 13° | 92.70.129.00 | |
| BMTC | MA-1919 30W | 85 | 23 | 51.2 | 15° | 92.70.131.00 | |
| BMTC | MA-1919 20W | 85 | 23 | 51.2 | 15° | 92.70.131.00 | |
| Citizen | CLU038 | 85 | 23 | 51.2 | 14° | 92.70.131.00 |
