1687-M
AR Series - Twist Lock Reflector
LED
CHM-9-AA10
Diameter
49.6 mm
Hole
16 mm
Height
21.7 mm

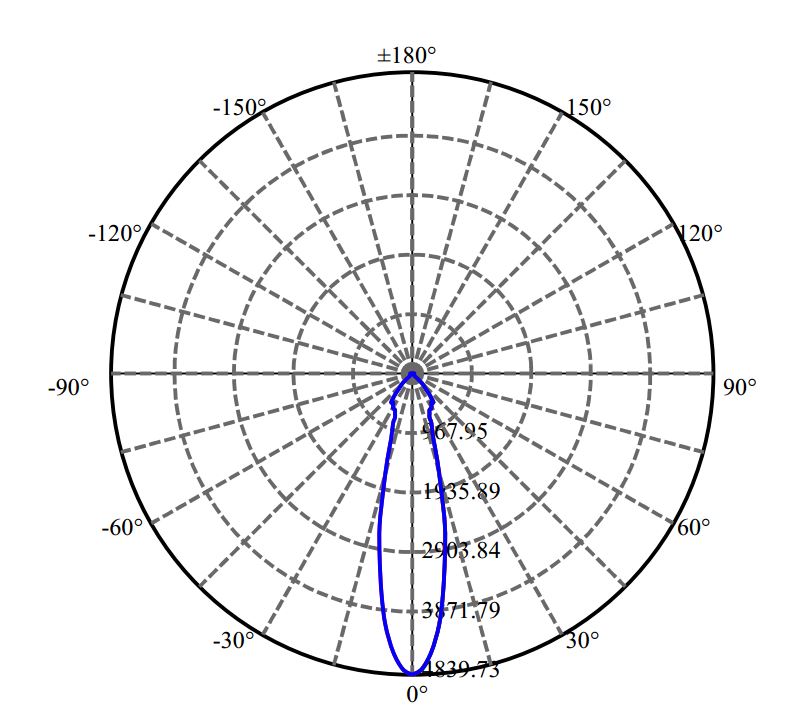

FWHM
25°
LES
9.6
Material
AL
Fastening
Holder
Application
Spot Light
Remark
Description
- Compatible for Nata optic parts. Fixation by twist lock, firm lock, low assembling cost!
- This range is patented products.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| Citizen | CLU026 | 49.6 | 16 | 21.7 | 25° | 92.70.124.00 | |
| Tridonic | SLE G7 9MM | 49.6 | 16 | 21.7 | 24° | 92.70.124.00 | |
| Xicato | XOB LES 9.8MM | 49.6 | 16 | 21.7 | 24° | 92.70.124.00 | |
| Xicato | XOB LES 6MM | 49.6 | 16 | 21.7 | 22° | 92.70.123.00 | |
| Nichia | NTCWT012B-V3 | 49.6 | 16 | 21.7 | 22° | 92.70.125.00 | |
| Nichia | NVNWS007Z-V1 | 49.6 | 16 | 21.7 | 20° | 92.70.125.00 | |
| Nichia | NFCWL036B-V2 | 49.6 | 16 | 21.7 | 23° | 92.70.132.00 | |
| Philips | SLM 1202 L09 G1 | 49.6 | 16 | 21.7 | 23° | 92.70.127.00 | |
| SEOUL | SAWx10 | 49.6 | 16 | 21.7 | 25° | 92.70.124.00 | |
| Luminus | CXM-9-AC40 | 49.6 | 16 | 21.7 | 27° | 92.70.124.00 | |
| Luminus | CXM-6-AC40 | 49.6 | 16 | 21.7 | 23° | 92.70.123.00 | |
| Luminus | CLM-9-AA40 | 49.6 | 16 | 21.7 | 27° | 92.70.127.00 | |
| Luminus | CHM-9-XD20 | 49.6 | 16 | 21.7 | 26° | 92.70.126.00 | |
| BMTC | MA-1313 7W | 49.6 | 16 | 21.7 | 25° | 92.70.124.00 | |
| Cree | CMT1420 | 49.6 | 16 | 21.7 | 25° | 92.70.124.00 | |
| Cree | CXA1512 | 49.6 | 16 | 21.7 | 24° | 92.70.127.00 | |
| Bridgelux | BXRV-DR-1830-H-1000-B-13 | 49.6 | 16 | 21.7 | 24° | 92.70.125.00 | |
| Bridgelux | BXRV-DR-1830-H-1000-A-13 | 49.6 | 16 | 21.7 | 24° | 92.70.125.00 | |
| Bridgelux | V4-HD | 49.6 | 16 | 21.7 | 21° | 92.70.122.00 | |
| Bridgelux | V10B | 49.6 | 16 | 21.7 | 25° | 92.70.124.00 | |
| Bridgelux | V6-HD | 49.6 | 16 | 21.7 | 21° | 92.70.124.00 |
Accessory
