2-1122-A4
AK Series - Link Mount Reflector
LED
V18B
Diameter
75 mm
Hole
25 mm
Height
43 mm

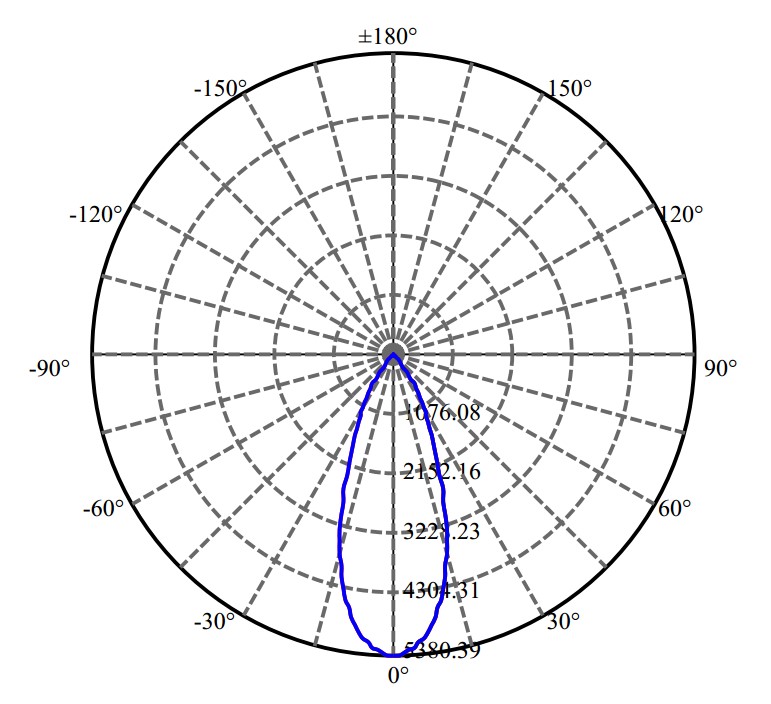

FWHM
38°
LES
18.0
Material
AL
Fastening
Metal Adapter + Holder TE 2213407-1
Application
Spot Light
Remark
Description
- Wide size range to fit TE &NATA poke-in holder.
- No soldering cost, high working efficiency.
Compatible LED
| Brand | LED | OD | Hole | H | FWHM | Accessory | |
|---|---|---|---|---|---|---|---|
| OSRAM OPTO | SOLERIQ S13 G2 | 75 | 25 | 43 | 36° | 92.76.365.00 99.02.73.172 |
|
| OSRAM OPTO | SOLERIQ S19 | 75 | 25 | 43 | 38° | 92.76.365.00 | |
| OSRAM OPTO | SOLERIQ S15 | 75 | 25 | 43 | 35° | 92.76.365.00 99.02.73.172 |
|
| SAMSUNG | LC026D | 75 | 25 | 43 | 37° | 92.76.365.00 99.02.73.172 |
|
| Luminus | CXM-11-AC30 | 75 | 25 | 43 | 34° | 92.76.365.00 99.02.73.172 |
|
| Luminus | CXM-14-AC40 | 75 | 25 | 43 | 36° | 92.76.365.00 99.02.73.172 |
|
| Luminus | CLM-14-AC30 | 75 | 25 | 43 | 36° | 92.76.365.00 99.02.73.172 |
|
| Tridonic | SLE G7 15MM | 75 | 25 | 43 | 36° | 92.76.365.00 99.02.73.172 |
|
| Tridonic | SLE G7 13MM | 75 | 25 | 43 | 33° | 92.76.365.00 99.02.73.172 |
|
| Nichia | NFCLJ060B | 75 | 25 | 43 | 36° | 92.76.365.00 | |
| Osram | PL-CORE-G7 3000 L15 H1 | 75 | 25 | 43 | 37° | 92.76.365.00 | |
| Cree | CMT1922 | 75 | 25 | 43 | 36° | 92.76.365.00 99.02.73.172 |
|
| Cree | CXA2530 | 75 | 25 | 43 | 38° | 92.76.365.00 | |
| Cree | CXA1830 | 75 | 25 | 43 | 36° | 92.76.365.00 | |
| Lumileds | 1208 | 75 | 25 | 43 | 36° | 92.76.365.00 | |
| Bridgelux | V13B | 75 | 25 | 43 | 34° | 92.76.365.00 99.02.73.172 |
|
| Bridgelux | V9-HD | 75 | 25 | 43 | 33° | 92.76.365.00 99.02.73.172 |
|
| Citizen | CLU038 | 75 | 25 | 43 | 35° | 92.76.365.00 99.02.73.172 |
|
| Citizen | CLU710 | 75 | 25 | 43 | 33° | 92.76.365.00 99.02.73.172 |
|
| Citizen | CLU720 | 75 | 25 | 43 | 35° | 92.76.365.00 99.02.73.172 |
|
| Lumens | EDC_47_10W | 75 | 25 | 43 | 28° | 92.76.365.00 |
Accessory
